Wind vane self steering

Mister Vee

Some Corribees have had wind vane self steering from the Dutch manufacturer Mister Vee:

http://www.mistervee.com

A free open source set of plans for a design called the ‘OS Walt’ can be downloaded from the Mr. Vee website. First register for an account on the website here. Once you have a username and password, visit the following pages to download the CAD, plans, list of parts and builders forum:

http://www.mistervee.com/?q=os-walt-free-self-steering-mister-vee

http://www.mistervee.com/?q=free-plans-os-walt

Books with plans

Ken built a self steering system for his Coromandel Yuan-Hang based on a design from:

NoImageAvailable Wind-Vane Self-Steering
Bill Belcher
ISBN: 0877421587

Jonny Moore system

Jonny Moore has kindly allowed us to reproduce this article:

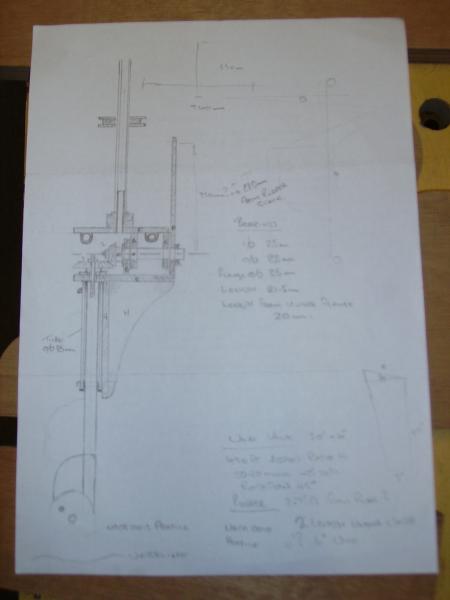

20090725_Windvane_1_JonnyMoore

Due to sailing Casulen II single-handed next year, I will need some sort of self-steering. It is my intention to install a tillerpilot, but, as explained in the solar panels section, I have slight reservations about power consumption. A wind vane was never going to be in the budget, and as I also needed a project for my GCSE technology course, I decided to attempt to design and make a self-steering windvane.

There is loads of information available on the Internet if you are prepared to try and make sense of all the advice being offered.

I am currently making two windvanes at the moment, one at school and the other at home. My total budget is £100.

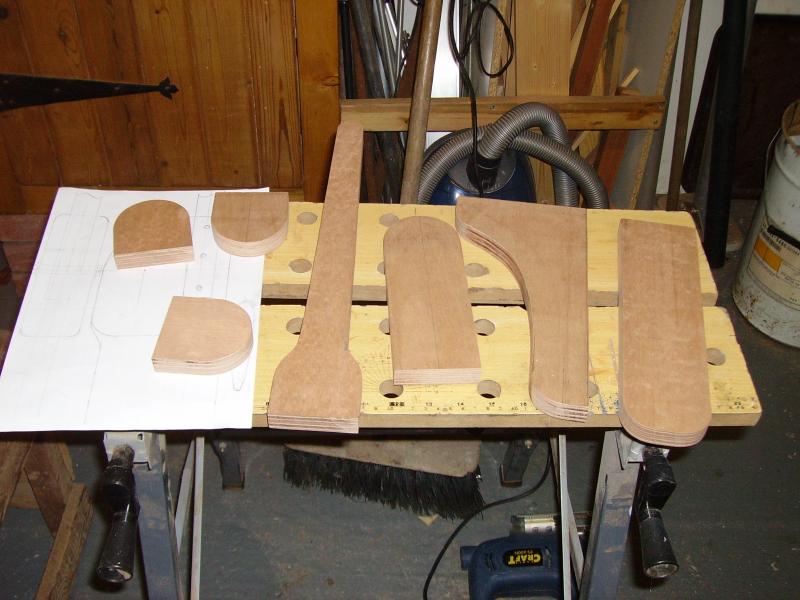

20090725_Windvane_2_JonnyMoore

I am now only making one as my teachers have agreed that once they have seen the finished product I no longer need to leave it in school which has considerably reduced my workload.

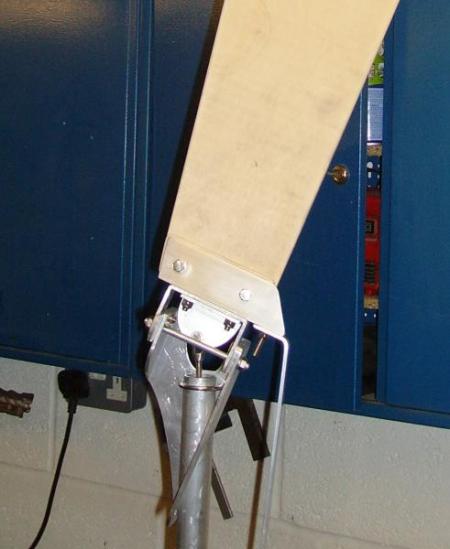

20090725_Windvane_3_JonnyMoore

Over the last few weekends I`ve being trying to get my windvane finished.

Two reasons for this, one Casulen`s planned relaunch date now only leaves me with 3 weekends left if I take out the Polar Bear Norway trip and secondly as this is my GCSE tech project it really needs finishing by Easter. I now only have the steering oar to make and the blocks to mount on Casulen II and then sea trials to see if it actually works!

Since these pictures were taken I have painted all the woodwork with grey epoxy, (left over from the anti-osmosis treatment carried out on the hull last year) to ensure it is totally watertight. More info soon!

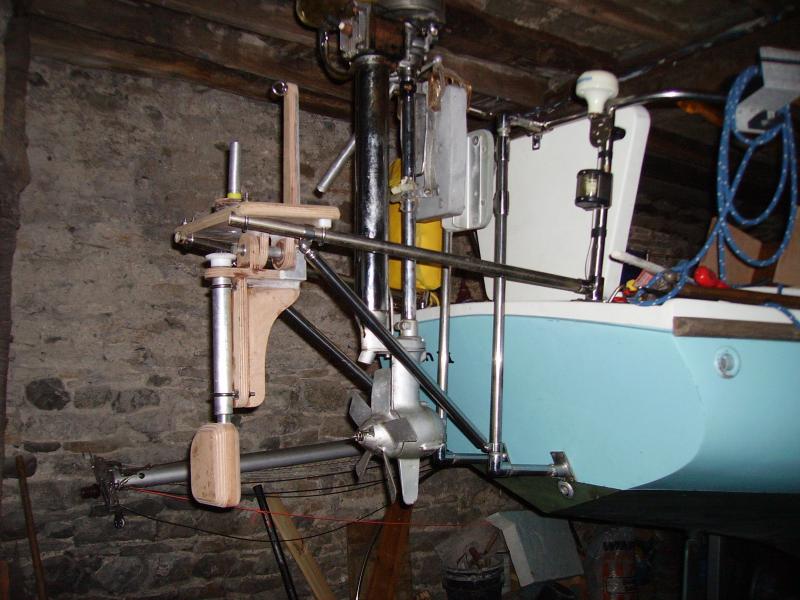

20090725_Windvane_4_JonnyMoore

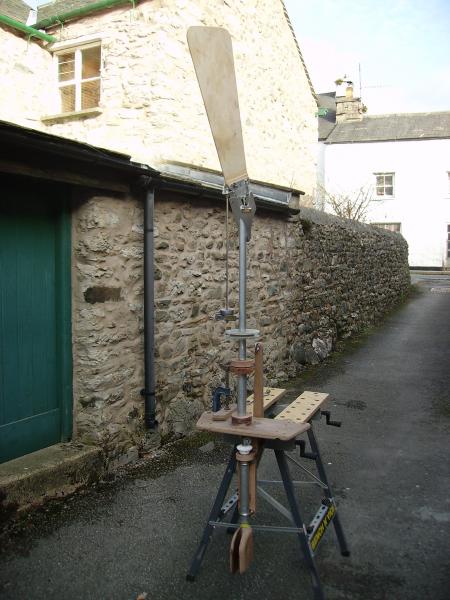

20090725_Windvane_5_JonnyMoore

The Windvane is now finished, all that remains is to try it out and find out if it works! As this is a GCSE project it is at school at the moment, but I hope to have it mounted on Casulen II by 18th Arpil ready for relaunching. Its been a interesting project and we have ended up with a Windvane that weighs  about 12kg including the mounting frame and all the control lines.(about 9kg without frame and lines)

20090725_Windvane_6_JonnyMoore

This is considerably below just about any other self steering vane which was one of my aims as adding weight to the back of a boat the size of a Corribee is to be avoided.  I will keep you updated when I have carried out some sea trials but for now here are a couple more pictures.

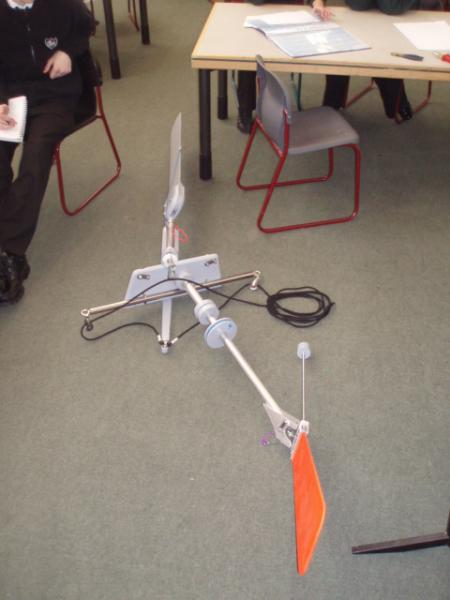

20090725_Windvane_7_JonnyMoore

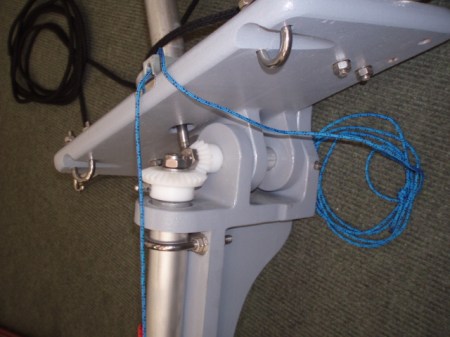

20090725_Windvane_8_JonnyMoore
